Automatic & manual transmissions for Hilux 2.8/2.4 GD-6, Fortuner, Prado, Land Cruiser 200/79, Corolla, Auris, Etios and Quantum. AC60F 6-speed auto, R150F 5-speed manual, A750F, AB60F, U340E and C59/C60 in stock.
Gemini Parts (JHB) for new aftermarket · Caryota Spare (CPT) for used OEM · nationwide crated delivery.
6-speed auto (AC60F), 5-speed manual (R150F, C59), 4-speed auto (U340E, A340) and heavy-duty Land Cruiser units all in stock.
Tell us your VIN — we match gearbox code, ratio and bellhousing bolt pattern so your ECU, speedo and fuel economy stay correct.
Every used unit is rolled through all gears, pressure-checked and flushed before dispatch. Torque converter included on autos.
Real SA market pricing by transmission code. Send us your VIN for an exact match and fitment confirmation.
Part No: 35000-0K170

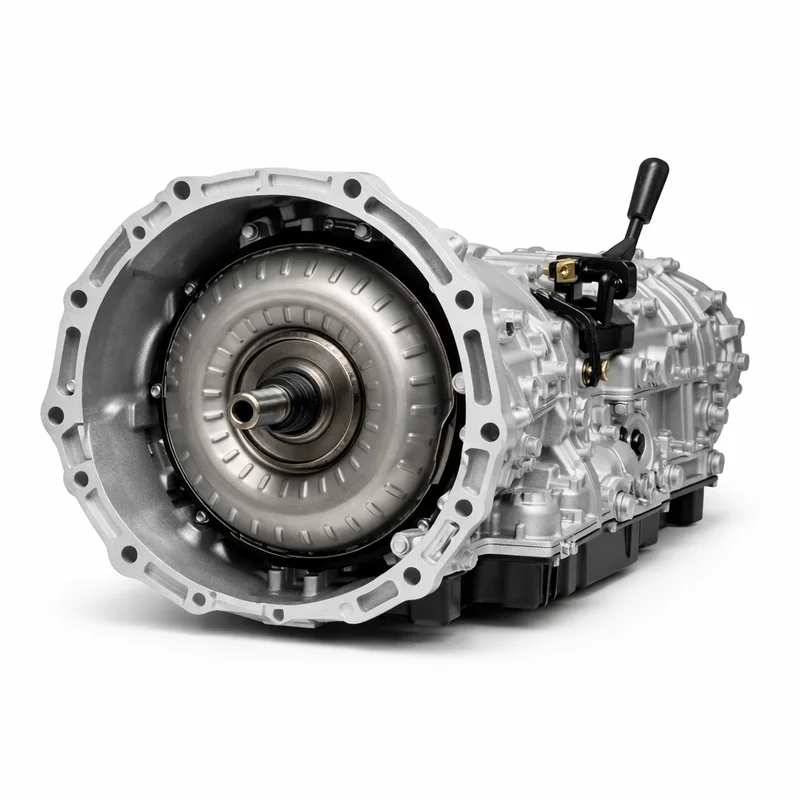

Code: AC60F
Aisin AC60F 6-speed auto fitted to 2.8 GD-6 Hilux and Fortuner. Torque converter lock-up and shift solenoids are common service items.

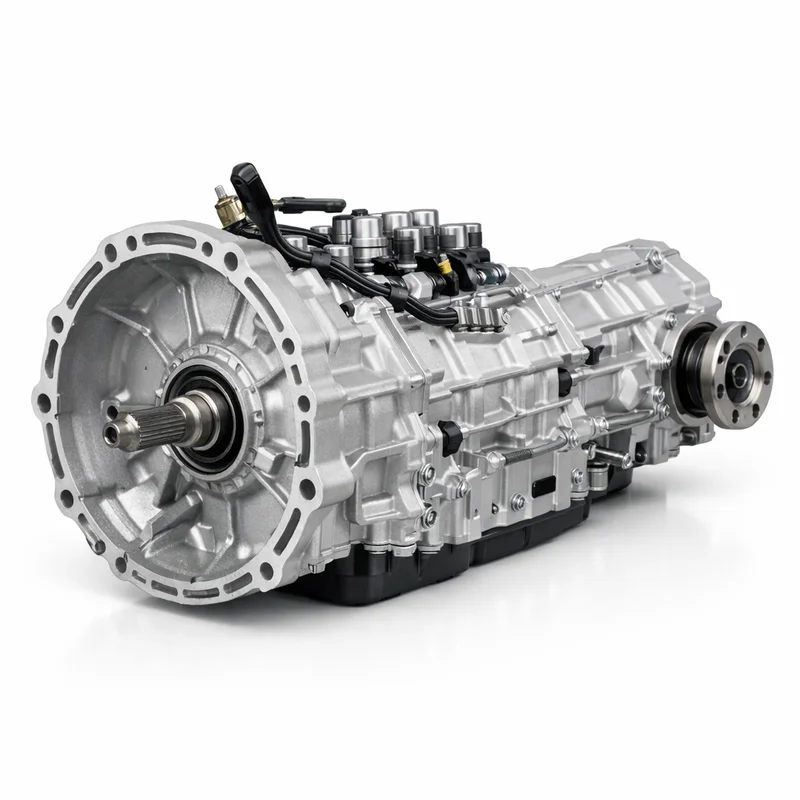

Code: AC60E / A750F (5AT)
5-speed automatic for the 2GD-FTV 2.4 GD-6. Shift quality issues often trace to valve body solenoids — full unit swap is common.
Part No: 33030-0K320

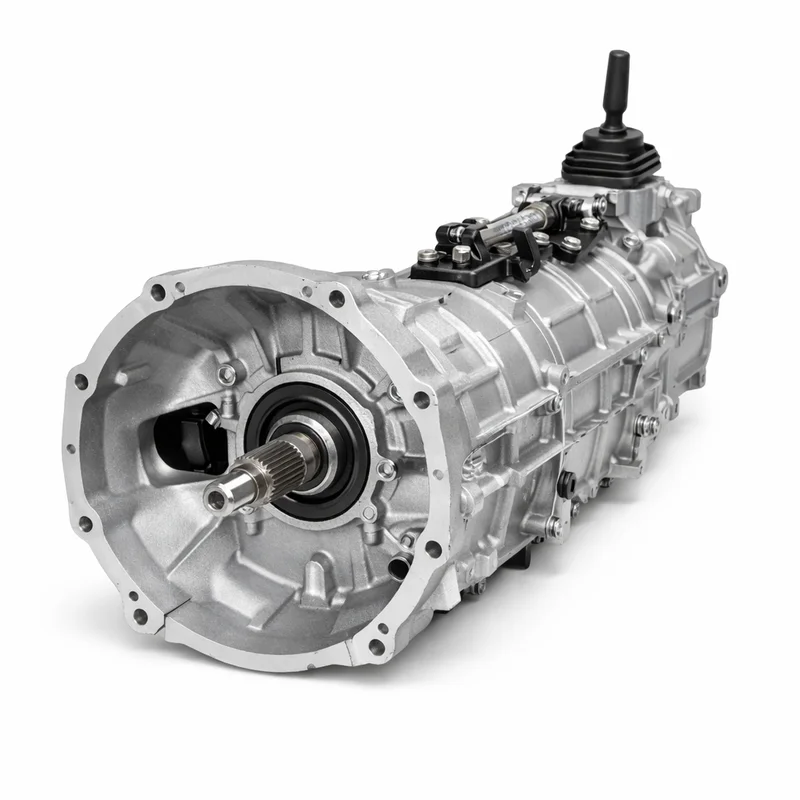

Code: R150F / R151F
Aisin R150F 5-speed manual — the backbone of the D-4D Hilux range in SA. Huge used stock from donor Hilux.
Part No: 35000-60640

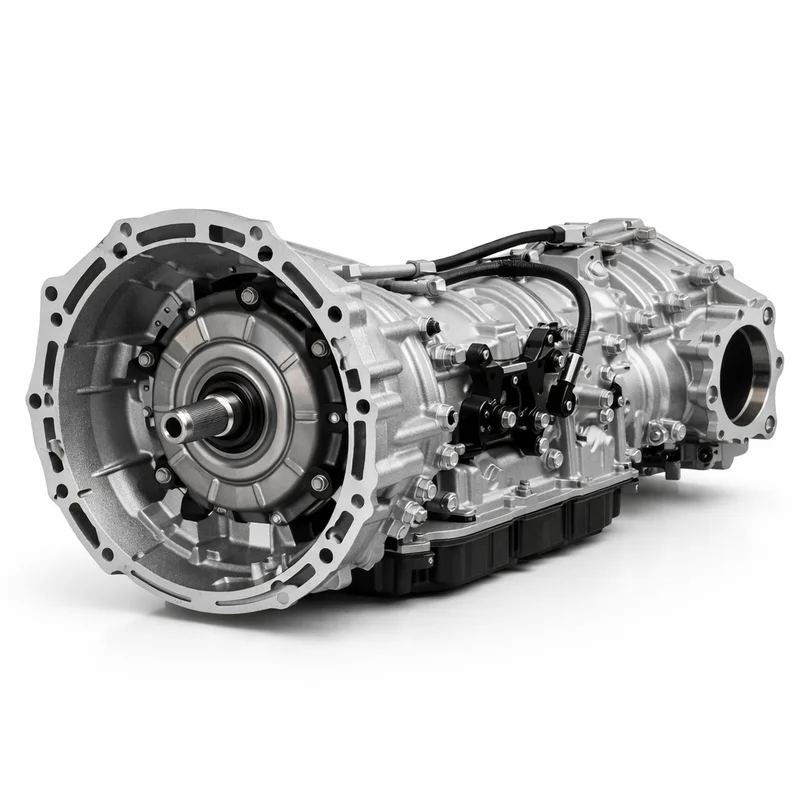

Code: A750F
Aisin A750F 5-speed auto for Prado 120/150 and other mid-size 4x4 Toyotas. Robust unit — most failures are valve-body related.

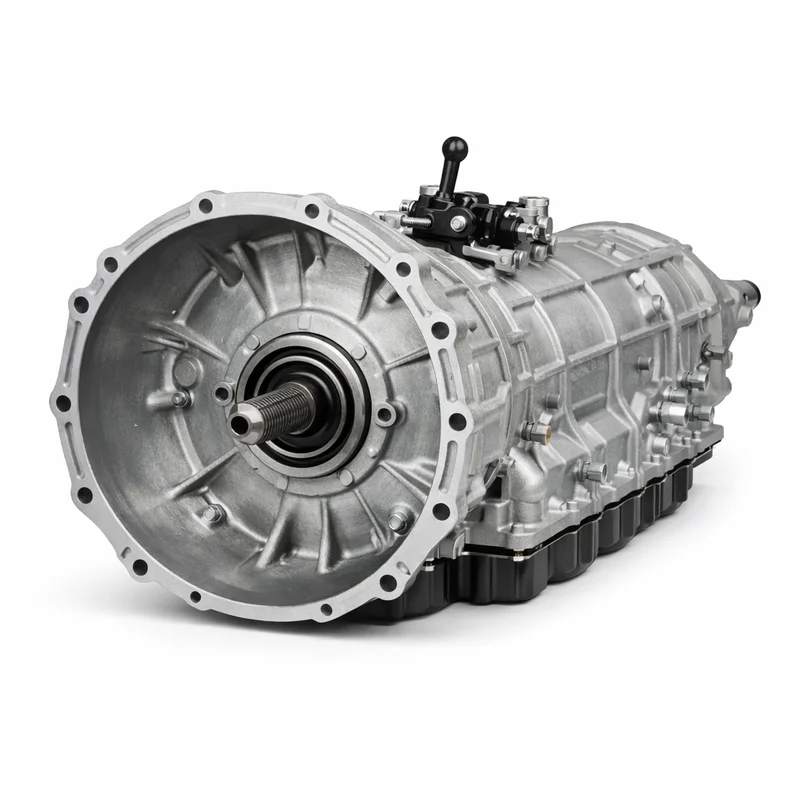

Code: AB60F
Aisin AB60F heavy-duty 6-speed auto rated for high torque. Fitted to Land Cruiser 200 and 70-Series V8 diesel. Specialist rebuild or swap.
Part No: 35000-12E40

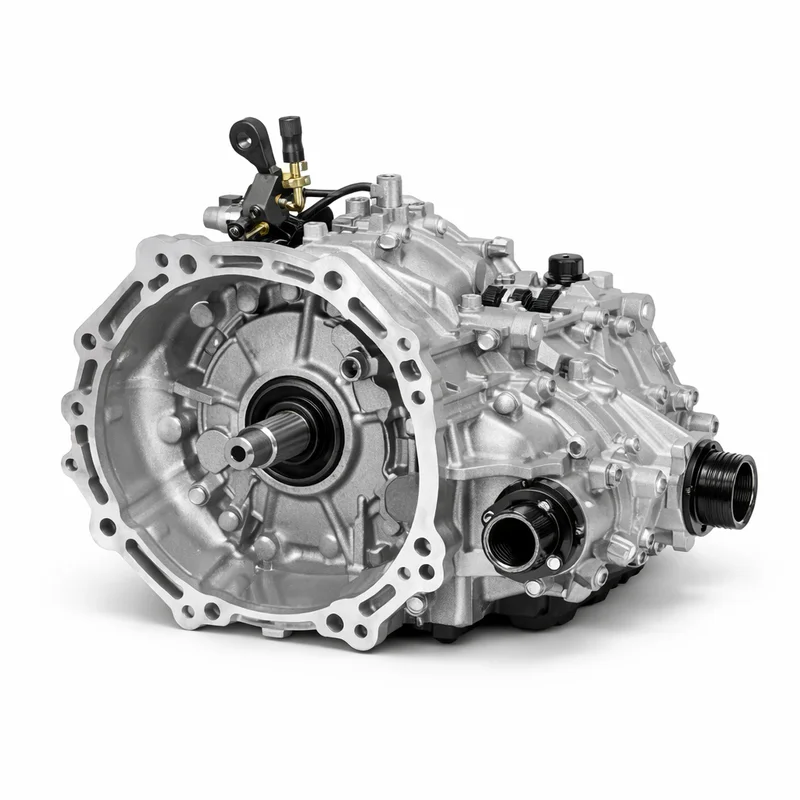

Code: U340E
Aisin U340E 4-speed auto for small-displacement Toyota petrol cars. Plentiful used stock from donor vehicles.

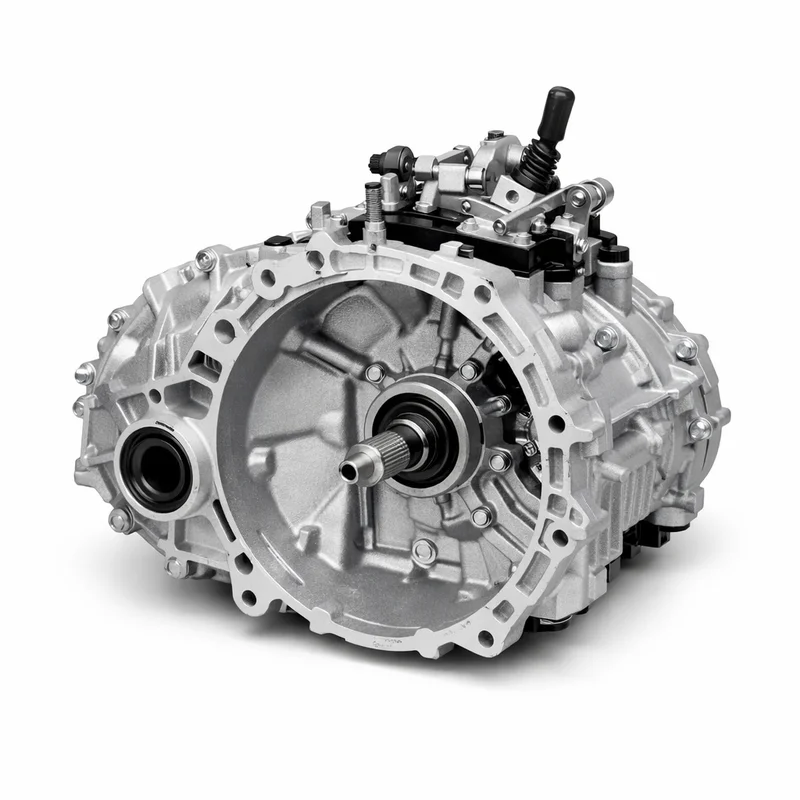

Code: C59 / C60
C59/C60 5-speed manual — light-duty transaxle for front-wheel-drive Toyotas. Easy interchange across the Corolla/Auris family.

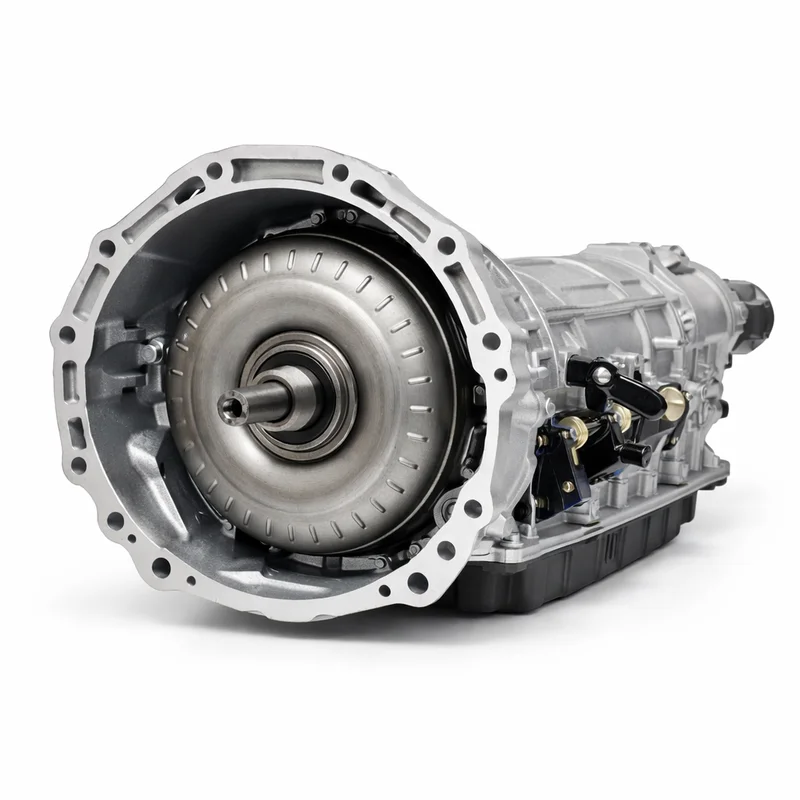

Code: A340E / A340F
Aisin A340 4-speed auto — reliable workhorse unit behind the 3RZ and 2TR petrol engines. Favoured by taxi and fleet operators.
Indicative pricing by model and transmission code. Actual quotes depend on donor km, condition, and whether you need a used unit, rebuilt assembly or new aftermarket.
| Model | Price Range (ZAR) |
|---|---|
| Hilux/Fortuner 2.8 GD-6 Auto (AC60F) | R28,000 – R48,000 |
| Hilux/Fortuner 2.4 GD-6 Auto | R22,000 – R38,000 |
| Hilux D-4D/GD-6 Manual (R150F) | R14,000 – R24,000 |
| Prado 120/150 Auto (A750F) | R32,000 – R55,000 |
| Land Cruiser 200/79 V8 (AB60F) | R45,000 – R85,000 |
| Corolla/Auris/Etios Auto (U340E) | R9,500 – R17,000 |
| Corolla/Auris/Yaris Manual (C59/C60) | R7,500 – R14,000 |
| Quantum/Hi-Ace Petrol Auto (A340) | R11,000 – R20,000 |
From compact transaxles in Corolla and Etios to heavy-duty Land Cruiser automatics, we cover SA's most-demanded Toyota transmissions.
AC60F and AB60F. Current-generation Hilux, Fortuner 2.8 GD-6 and Land Cruiser 200. Electronically-controlled with Aisin internals.
A750F for Prado 120/150 and Land Cruiser 100, and the earlier 5-speed in Hilux 2.4 GD-6. Reliable, rebuild-friendly.
R150F 5-speed (Hilux D-4D/GD-6 manual) and C59/C60 transaxle (Corolla, Auris, Yaris). Low-cost and easy to rebuild.
U340E (Corolla, Auris, Etios) and A340 (Quantum, Hi-Ace 2.7 petrol). Older design, huge SA donor supply.
Select your Toyota model to browse transmission parts including complete gearboxes, clutch kits, torque converters and drivetrain components.
South Africa's best-selling bakkie
Rugged family SUV built for adventure
World's best-selling sedan
Affordable and reliable compact sedan
Legendary off-road SUV
Iconic South African minibus taxi
Premium off-road SUV
Nimble city hatchback
We crate and ship complete gearboxes to all 9 provinces — Gauteng, Western Cape, KwaZulu-Natal, Eastern Cape, Limpopo, Mpumalanga, Free State, Northern Cape, North West. Dual-depot dispatch from Johannesburg (Gemini Parts) and Cape Town (Caryota Spare) means faster turnaround wherever you are. Gearboxes ship on wooden pallets with ATF drained for safe transport.
A gearbox swap is second only to an engine replacement in labour cost, so matching the right transmission to your vehicle is essential. Toyota's SA lineup uses a small number of transmission families that repeat across many models: the AC60F and AB60F Aisin 6-speed automatics cover the current Hilux, Fortuner and Land Cruiser 200; the A750F 5-speed auto sits behind Prado and older Land Cruiser; the R150F 5-speed manual is the go-to Hilux manual gearbox; and the U340E 4-speed auto and C59/C60 manual handle the Corolla, Auris, Etios and Yaris range.
Three things must match: the bellhousing bolt pattern, the input shaft spline count, and (for automatics) the ECU/TCM software. Running an AC60F from a 2.8 GD-6 Hilux behind a 2.4 GD-6 engine, for example, will throw ratio codes and upset the traction-control system. Our quotes always confirm donor-vehicle VIN and gear-ratio stamping so your speedo and fuel economy stay accurate. On a 4x4, also confirm your low-range transfer unit mounting face matches — part-time and full-time 4WD transfer cases don't interchange.
Slipping, flaring between shifts, and “no drive” symptoms often point to the gearbox — but can also be caused by an overworked torque converter, a blocked valve body, or coolant intrusion from a failing radiator (common on 1GD-FTV Hilux). If the underlying engine has developed a compression issue or a broken head gasket and casting, the transmission may simply be struggling under an engine that's dumping heat and pressure into the ATF. Rule the engine out before replacing the box. In borderline cases, pricing both a bench-tested donor engine and a gearbox up front lets you make a full-driveline decision rather than discovering the engine is tired after the gearbox is already in.
A transmission swap opens access to everything behind it, so it's worth asking about adjacent drivetrain work at the same time. 4x4 owners should have the matching diff ratio checked while the driveshafts are out — mismatched ratios between a replacement box and the existing diff cause driveline bind. Diesel Hilux and Fortuner owners whose gearbox failed from heat cycling should also inspect the turbo intake side: a boost leak driving excessive heat into the transmission cooler is a common root cause. Let us know the full vehicle history when you request a quote and we'll flag which adjacent parts are worth doing concurrently.
Used Toyota gearboxes start around R7,500 for small Corolla/Yaris manuals and go up to R85,000 for Land Cruiser V8 AB60F autos. The most common unit — the R150F Hilux manual — typically costs R14,000 – R24,000 used. Auto gearboxes are roughly 40-80% more expensive than their manual equivalents. New aftermarket/remanufactured units sit at the top of each range.
Toyota manuals (R150F, C59, C60) are exceptionally durable and cheaper to repair. Toyota autos (Aisin AC60F, A750F, A340) are also reliable but failures tend to be more expensive when they happen — valve body and solenoid issues dominate. For bakkie/4x4 use under load, a well-maintained manual typically outlasts an auto. For daily commuting, modern Toyota autos are trouble-free for 250,000+ km with regular fluid changes.
Yes — gearboxes are matched to engine torque output, bellhousing bolt pattern, and ECU programming. A 2.8 GD-6 AC60F will not directly bolt to a 2.5 D-4D without a major conversion. Always supply your VIN or engine code when requesting a quote so we can cross-reference the correct unit. Within the same engine family, interchange is usually straightforward (e.g. Hilux and Fortuner D-4D share gearboxes).
Used complete auto gearboxes usually ship with the torque converter attached. Manuals do not include the clutch kit or flywheel — those are separate. New aftermarket and reman units typically come without the torque converter (a reman converter is sold separately, R3,500 – R8,500). Always confirm what is included when ordering.
A skilled workshop can swap a Hilux manual gearbox in 4-6 hours and an auto in 6-9 hours. Land Cruiser 4x4 units take 8-12 hours due to transfer-case disconnect. Plan for a full day in the workshop. When swapping an auto, always replace the fluid and filter with fresh Toyota-spec ATF — running old fluid destroys a fresh unit.
New aftermarket and remanufactured gearboxes from Gemini Parts (JHB) carry a 6-12 month warranty (unit-dependent). Used OEM gearboxes from Caryota Spare (CPT) are road-tested or bench-tested before dispatch and carry a 30-90 day warranty. Installation by a qualified workshop using Toyota-spec fluid is required for warranty to apply.
Send us your Toyota model, year, engine code and current kilometres. We'll quote used OEM, rebuilt and new aftermarket transmissions with nationwide crated delivery.
