Toyota Transfer Cases: A Practical Guide for SA 4x4 Owners

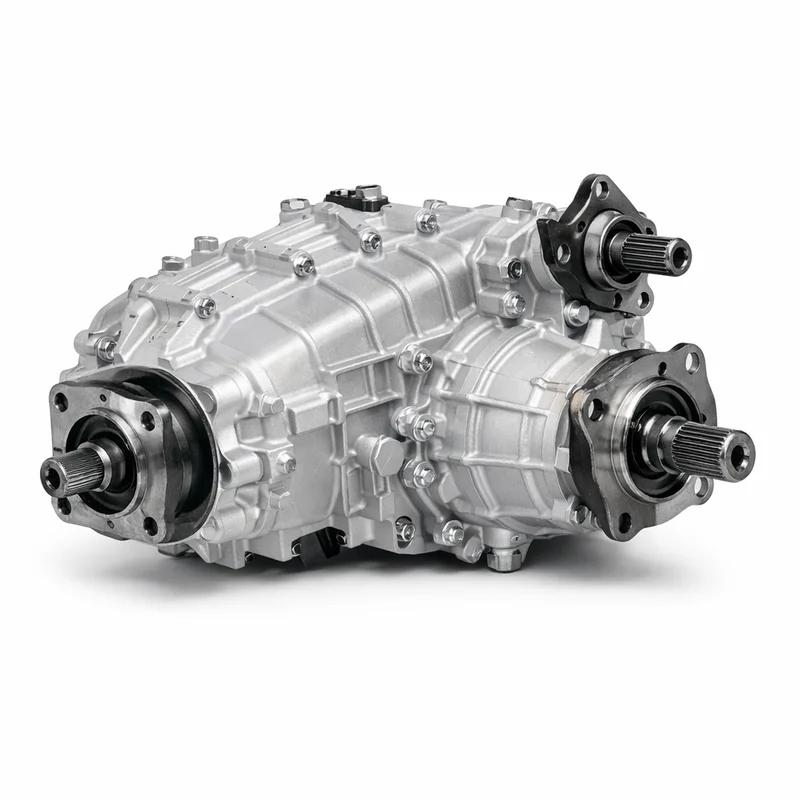

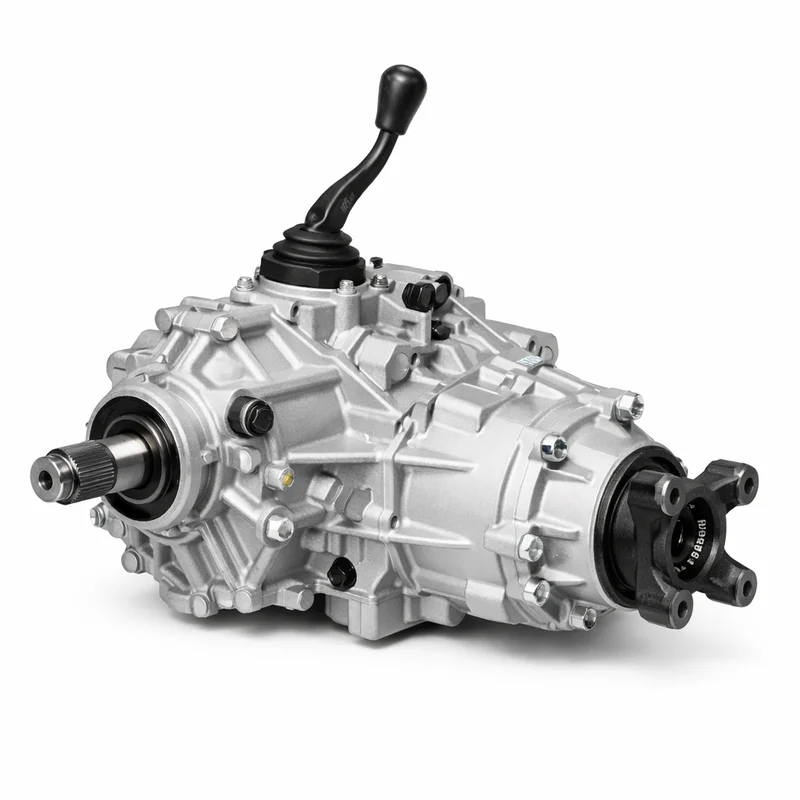

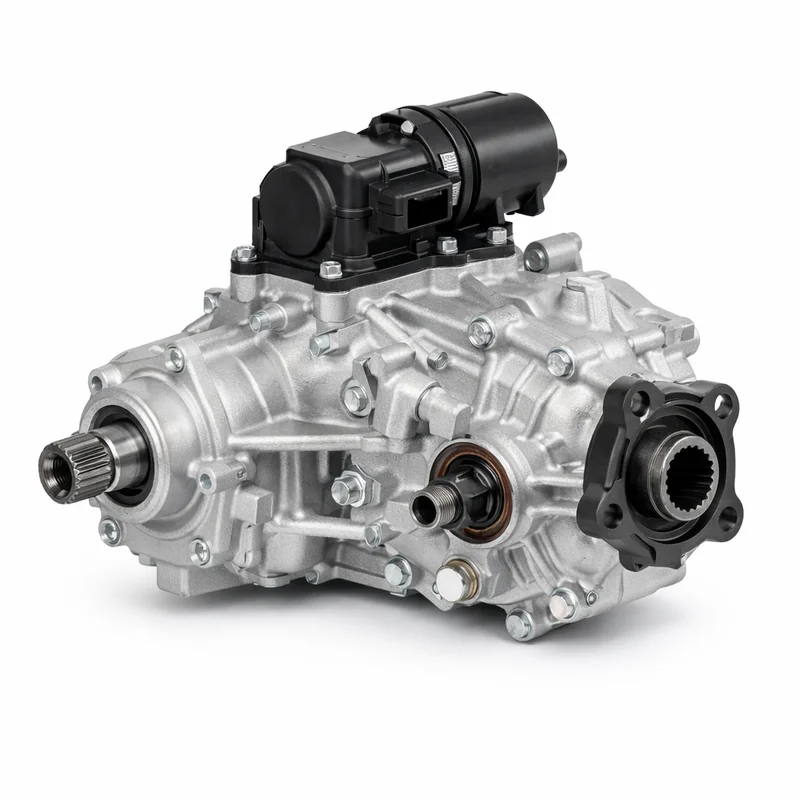

Transfer cases are the unsung hero of Toyota 4x4 ownership. From the HF2A in the 2016+ Hilux GD-6, to the cable-shift VF2BM in older D-4D models, to the heavy-duty lever-shift units in the Land Cruiser 70 and 79 Series, Toyota has built some of the most reliable 4x4 gearboxes in the world. But they still wear, leak, and occasionally fail — especially after heavy off-road use, flood damage, or abuse. Before blaming the transfer case, check that the noise isn't coming from the main gearbox sitting directly in front of it; output-shaft bearing failure there mimics transfer case symptoms perfectly.

Symptoms of transfer case trouble

• Grinding or whining when shifted into 4H or 4L
• Warning lights (4x4 lamp, ABS, traction control)
• Inability to engage 4WD, or popping out of 4WD while driving
• Fluid leaks (reddish-brown ATF) under the vehicle near the gearbox output
• Vibration at specific speeds, usually between 60-100 km/h

On the HF2A electronic-shift unit, the most common failure is the shift actuator motor itself — not the gear innards. Replacing just the actuator (R3,500 – R6,500) often restores function without a full transfer case swap. We can quote either component. If the transfer case failed because front-driveshaft torque spiked during a hard launch, inspect the front differential at the same time — that same shockload routinely chips pinion teeth or snaps CV stub splines.

When to replace vs rebuild

A used OEM transfer case from a low-km donor is often cheaper and faster than a rebuild, particularly for the VF2BM (plenty of SA donors). Rebuilds make sense when the housing is fine and only the chain, bearings, or shift fork have failed.

Plan for the whole drivetrain, not just the case

On vehicles with more than 300,000 km, it's rare for the transfer case to fail in isolation. If the truck has lived hard, check the engine too — a tired variable-nozzle turbo or hairlined diesel head often explains the lugging and shock-loading that killed the transfer case chain. Customers facing all three issues at once usually find a complete donor engine assembly paired with a bench-tested transfer case is the quickest path back on the road, versus rebuilding everything piecemeal.
